SIG RASCAL KIT

SIGRC80

Sold Out $149.99

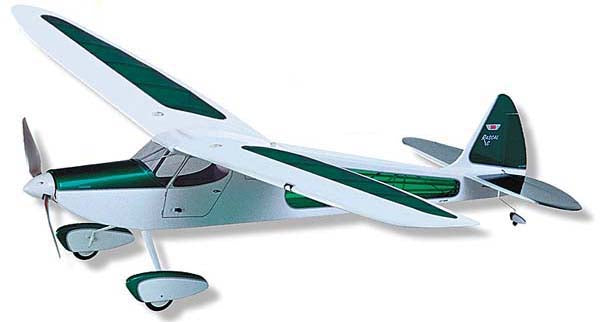

There was a simpler time when the lines of a model airplane could have an almost magical effect on a modeler. The Rascal R/C is that kind of model. Specifically designed to be powered by either a geared Speed 400 electric motor or .049-.074 R/C glow engines, the Rascal performs like no other plane in its class.
Loops, rolls and many other magical maneuvers are but a take off away. This CAD aided design is almost totally laser-cut with quality graded SIG AAA balsa. This kit features full sized, rolled plans, a completely illustrated instruction manual, SIG hardware, beautiful decals including a full color instrument panel, and a gorgeous set of molded wheel pants.


The Rascal with a .061 Glow Engine	Easy Access Bottom Hatch for Battery Pack and Radio Equipment	Plenty of Room for Geared Speed 400 Motors

KEY FEATURES:

Wingspan

49 in

1245 mm

Wing Area

324 sq in

20.9 dm²

Length

32.5 in

825.5 mm

Flying Weight - Electric
Inc. 7-Cell Nicad
Battery Pack weight

22 - 24 oz

625 - 680 g

Flying Weight - Glow

18 - 20 oz

510 - 567 g

Radio Required
(not included)

3-Channel - Rudder, Elevator, and Throttle

Power
(not included)

Set Up Specifications

Accessories

Electric - Speed 400 Motor and Gear Drive Unit
Glow - .049 - .074 2-Stroke Glow Engine

Elevator	1/4	inch	6	mm	Up and Down
Rudder	3/8	inch	10	mm	Right and Left
Center of Gravity	0	inch	0	mm	At the wing spar
Dihedral		degrees		degrees
Incidence	+ 0 degree wing, 0 degree stabilizer
Engine Offset	3 degree down, 0 degree right

	English		Metric		Number Required
Main Wheels	1 7/8	inch	48	mm	2
Fuel Tank	2	ounce	59	cc	1
Battery Pack	7 or 8 cell 600AE Nicad				1
Spinner	1.5	inch	38	mm	1
Covering	2 rolls depending on trim scheme

Rascal Kit Instruction Manual Click title to open in a new window.

	Complete Pdf (2.6Mb) Download
