SIG KOUGAR MARK II KIT

SIGRC35

Sold Out $160.99

PRICE SHOWN INCLUDES A $20.00 SHIPPING SURCHARGE.

If you are looking for an R/C model that is easy to build and exciting to fly, the KOUGAR is for you! This sleek jet-style airplane has a fully symmetrical wing section for smooth pattern-like aerobatics. The KOUGAR will do every stunt in the book, yet it is not difficult for low-time pilots to handle. Ample wing area and a thick airfoil provide outstanding slow speed stability.

Kougar "early Thunderbird" color scheme

Built-in wing "washout" eliminates tip stalling, enabling the KOUGAR to be slowed down to a walk for realistic nose-high landings. The KOUGAR is highly recommended as an introduction to low-wing flying and for beginning pattern competitors.

Don't let the KOUGAR's racy lines worry you. Construction of this sport model is simple and straight forward. The load-carrying and equipment-carrying portion of the fuselage is basic balsa box structure.

Once that is built, you add a molded plastic fuselage top, a molded clear plastic canopy, and a molded plastic cowling, to give the KOUGAR its modern jet-style shaped. The wings are white foam core with 1/16 in. thick balsa sheeting. Tail surfaces are sheet balsa.

Wingspan

50 in

1270 mm

Wing Area

540 sq in

34.8 dm²

Length

47 in

1194 mm

Flying Weight

5.5 - 6 lb

2500 - 2720g

Wing Loading

23 - 25 oz/sq ft

70 -76 g/dm²

Radio Required

4-Channel (not included)

Engine Required

Set Up Specifications

Accessories

2-Stroke .40 - .60 (6.5 - 10 cc) (not included)

Elevator	3/8	inch	9.5	mm	Up and Down
Rudder	1 1/2	inch	38	mm	Right and Left
Ailerons	1/4	inch	6.4	mm	Up and Down
Center of Gravity	1/2	inch	13	mm	Back from tip
Dihedral	1	inch	25.4	mm	Pre Wing Panel
Incidence	+0 degree wing, 0 degree stabilizer
Engine Offset	0 degree down, 0 degree right

	English		Metric		Number Required
Pilot	1 1/2	inch	38	mm	1
Main Wheels	2.5	inch	64	mm	2
Nose Wheel	2.5		64	mm	1
Fuel Tank	10	ounce	295	cc	1
Spinner	2 1/2	inch	70	mm	1
Covering	3 rolls depending on trim scheme

Optional Kougar ACCESSORY KIT

Order No. SIGAK235

KIT FEATURES

HARDWARE PACKAGE

Pre-Cut Foam Wing Cores

1/16 " Balsa Wing Sheeting

Basic Balsa Box Fuselage Structure

Molded ABS Plastic Fuselage Top

Molded Jet-Style Clear Canopy

Injection-Molded ABS Plastic Cowling

Sheet Balsa Tail Surfaces

Formed Landing Gear Wires

Steerable Nose Gear

Photo-Illustrated Assembly Manual

Control Horns

Nose Gear Bearing

SIG Easy Hinges

Fiberglass Wing Tape

Bolts, Nuts and Screws

Torque Rods

R/C Links and Rods

Engine Mounts

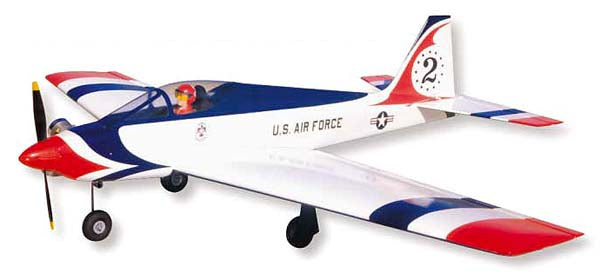

Since the KOUGAR is a sport model, not a scale model, no decals are included in the kit. However, after numerous requests, SIG does have available several decal sheets that make it easy for you to decorate your KOUGAR to look like the world famous U.S. Air Force Thunderbirds. You can duplicate either the early period silver Thunderbird scheme or the white "team number" color scheme that the Thunderbirds use today.

For early-period Thunderbird markings order:
Kougar Stars & Bars Decal Sheet -
Order No. SIGDKM235AB
Kougar Black Lettering Sheet -
Order No. SIGDKM235AC

For modern Thunderbird Team markings order:
Kougar Team Numbers Sheet -
Order No. SIGDKM235B
Kougar Team Insignia Sheet -
Order No. SIGDKM235C

Kougar Mark II Kit Instruction Manual Click title to open in a new window.


	Complete Pdf (5.3 Mb) Download
