NEW 1/4 SCALE T-CLIPS ARF 90in DUE IN MID SEPTEMBER

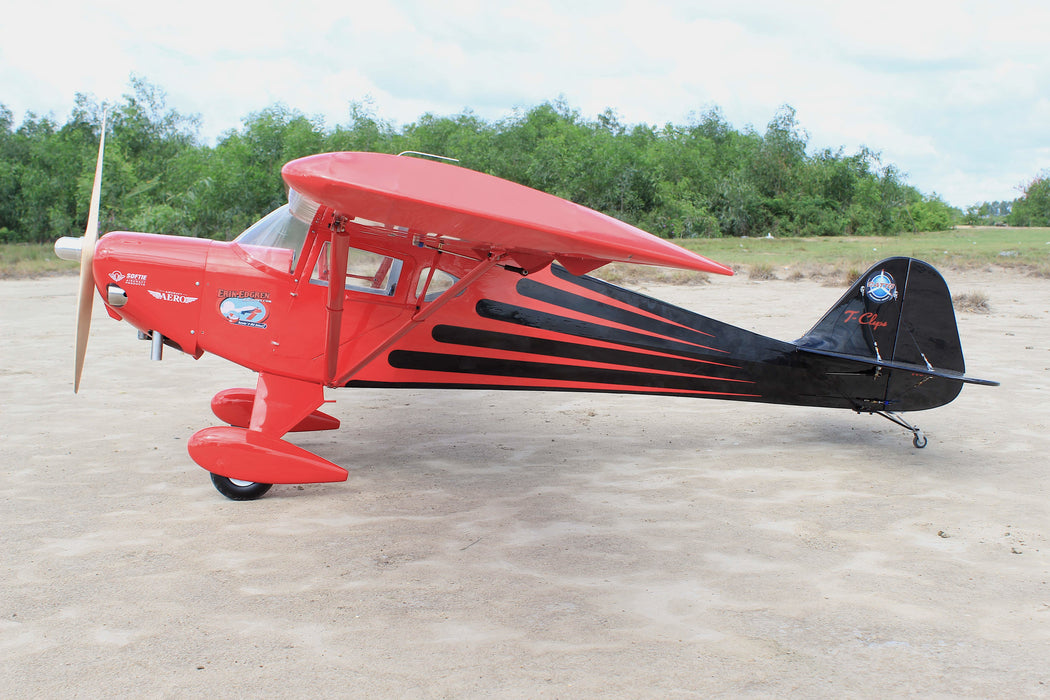

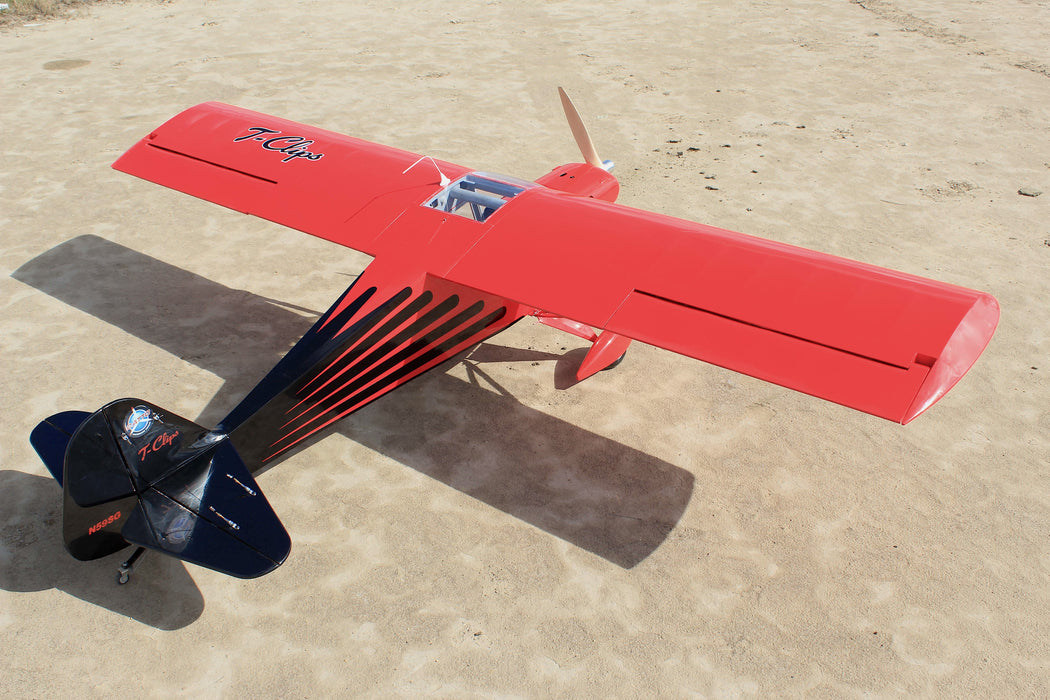

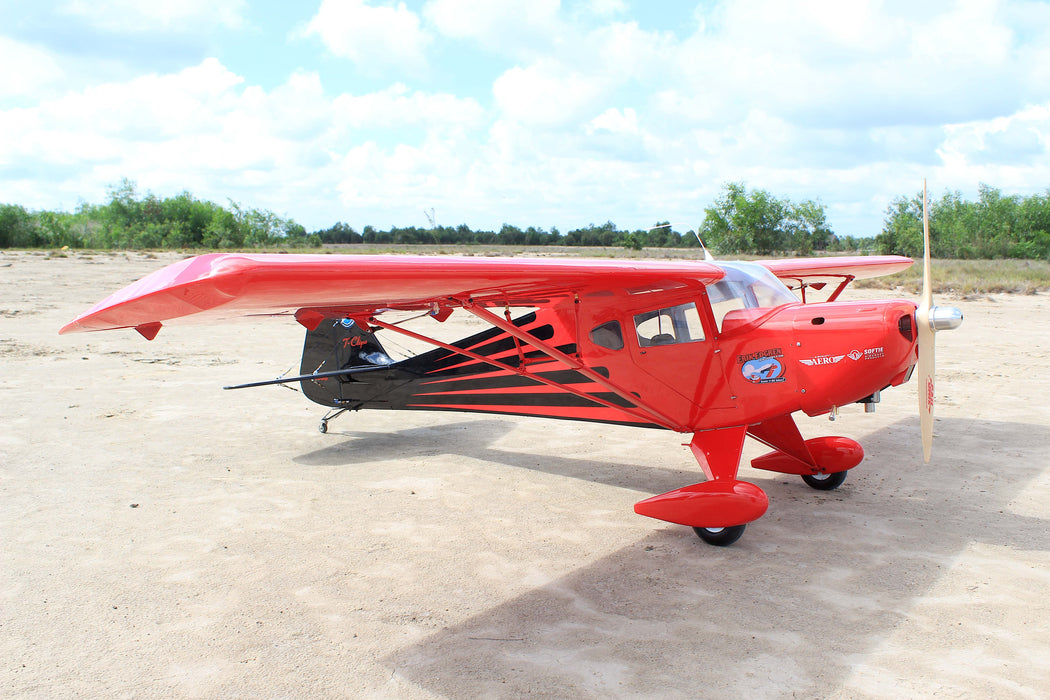

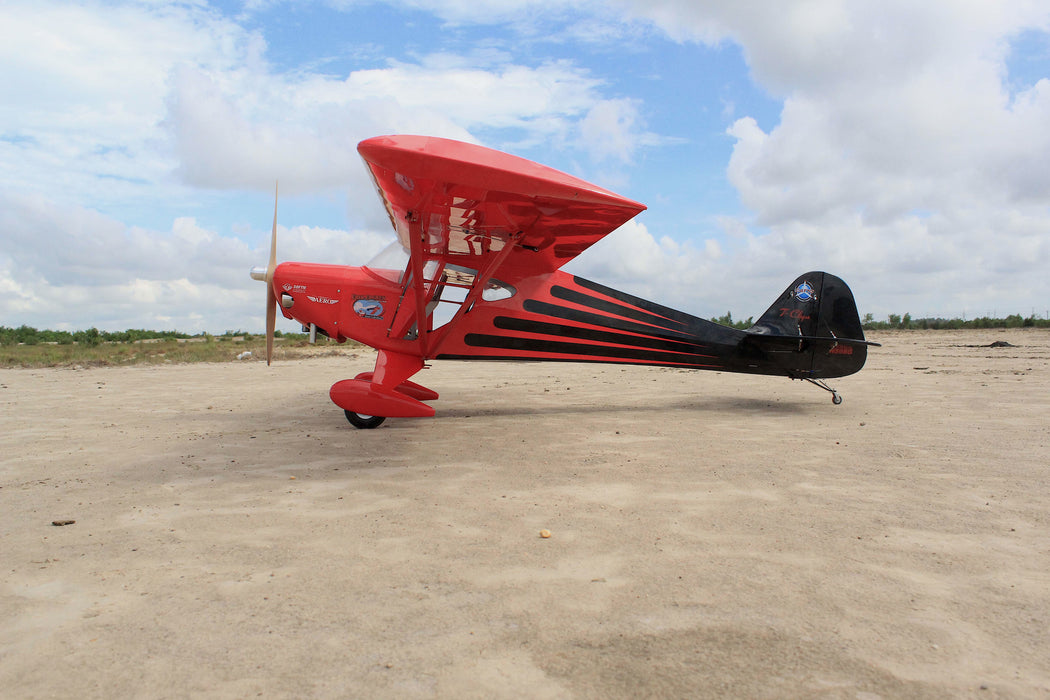

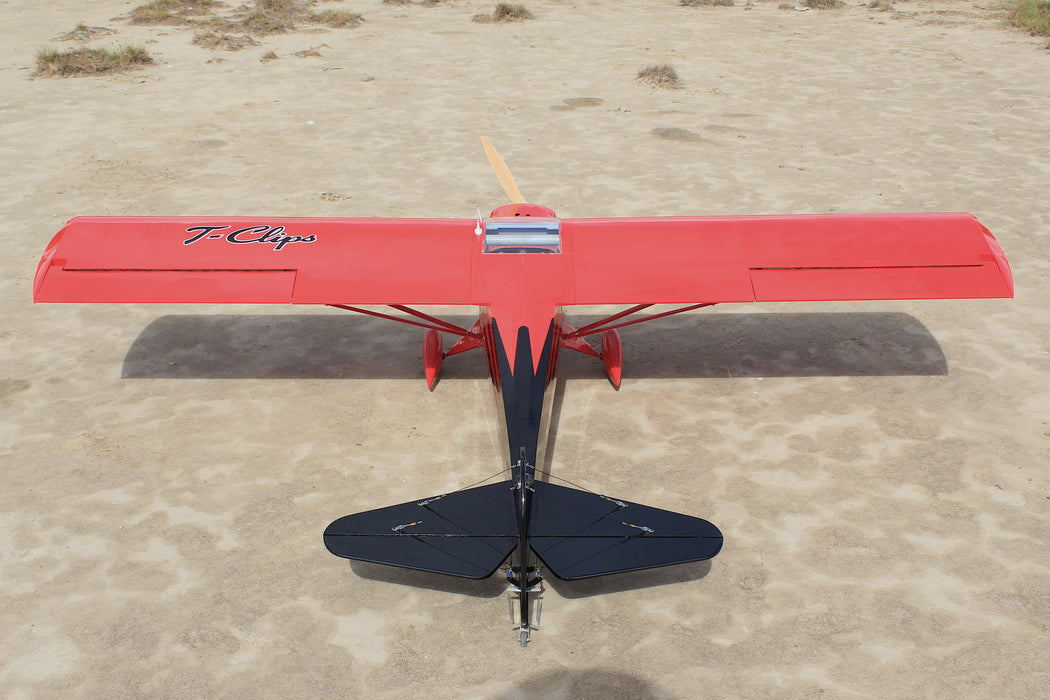

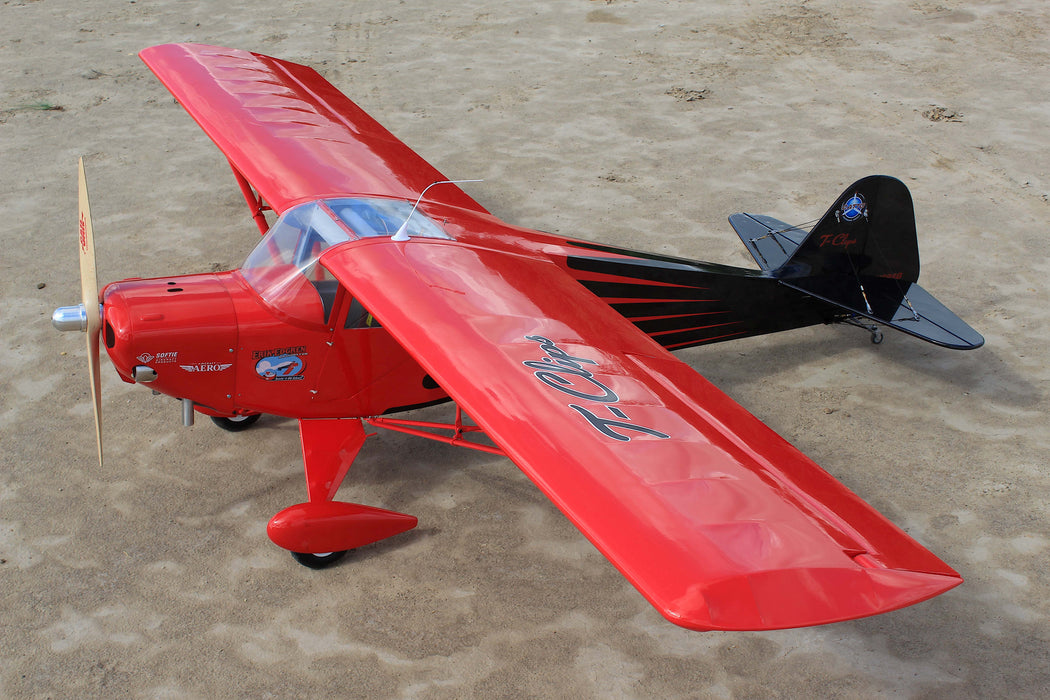

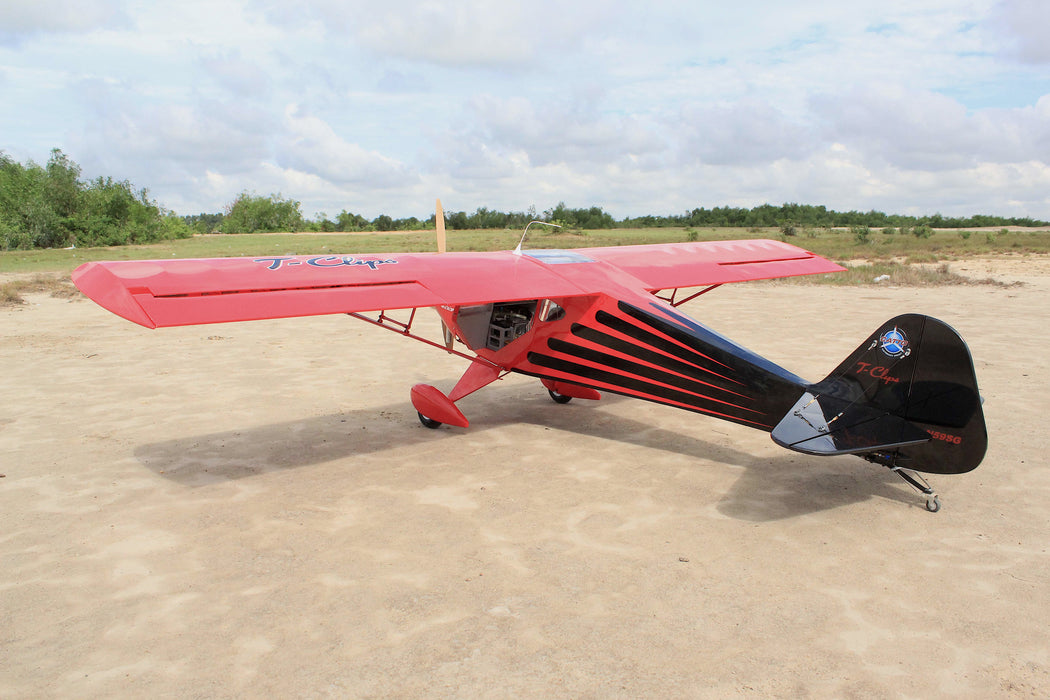

Thank you for choosing the 1/4 scale T-CLIPS ARF 90in ARF by SIG MANUFACTURING. The 1/4 scale T-CLIPS ARF 90 in was designed with the intermediate/advanced sport Flyer in mind. It is a semi scale airplane which is easy to fly and quick to assemble. The airframe is conventionally built using balsa, plywood to make it stronger than the average ARF, yet the design allows the airplane to be light. You will find that most of the work has been done for you already. The motor mount has been fitted and the hinges are pre-installed. Flying the 1/4 scale T-CLIPS ARF 90 in is simply a joy.

SPECIFICATIONS:

Wingspan---------------- 90 in-------------------- 2286 mm
Length-------------------- 63 in-------------------- 1600 mm Wing
Area----------------------- 1,387 sq in ------------ 89.5 dm²
Flying Weight----------- Approx. 15.4 lb------- 7 kg
Wing Loading----------- 26.1 oz/sq ft ----------- 78.2 g/dm²
Radio Required--------- 6+ Channel Computer Radio
Servos Required-------- 6 High-Torque Standard Servos
Recommended Power Systems
Glow Engines
• 2-Stroke: 1.08 cu in
• 4-Stroke: 1.20 cu in
Gasoline Engines: 20-30cc
Electric Power System
Motor: Hi-Max HC6320-250 Brushless Outrunner
KV Rating: 250 KV
Power Output: 1700-2200 Watts
Propeller: APC 17×10
ESC: Minimum 100A Brushless ESC with BEC (10 cell
Compatible)
Arming Switch: XT90 Anti-Spark Arming Switch.
Battery: (2) 5S LiPo, 4500mAh, 45C Continuous Discharge

Click Here to Download the Manual
