SIG WONDER KIT

SIGRC66

Sold Out $106.99

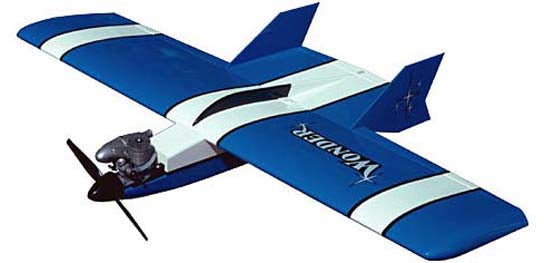

The Wonder is best described as a very fast, go-where-you-point-it, turn-it-quick-or-it'll-be-gone kind of plane designed for hot-thumbed R/C pilots. With an .09 or a .10 size engine, the Wonder is actually a very nimble, aerobatic, smooth flying sport plane, but with a snarlin' .15 or .19 up front it's a hand- launched hot rod! Landings are no sweat thanks to the thick symmetrical airfoil and the light wing loading.
	Wonder HOW it flies? Wonder IF it flies?
	Your first adrenalin-pumping, action packed, speed blurred Wonder flight will answer those questions in a big hurry!

Build any one of these four versions from the same premium quality SIG kit!

C`mon, shake things up and take a walk on the wild side of sport flying.
Fly a Wonder!

Wingspan

37.5 in

953 mm

Wing Area

338 sq in

21.8 dm²

Flying Weight:

26 - 38 oz

737 - 1075 g

Wing Loading

11.1 - 16.2 oz/sq ft

34 - 49 g/dm²

Radio Required
(not included)

2-Channel (aileron, and elevator)
3-Channel (aileron, elevator, and throttle)

Engine Required

Set Up Specifications

Accessories

2-Stroke .09-.19 (1.5 - 3.1 cc) (not included)

Elevator	1/4	inch	6	mm	Up and Down
Aileron	5/8	inch	16	mm	Up
	5/8	inch	16	mm	Down
Center of Gravity	2 3/8	inch	60	mm	Back of leading edge at root
Dihedral	0	inch	0	mm
Incidence	+0 degree wing, 0 degree stabilizer
Engine Offset	4 degree down, 0 degree right

	English		Metric		Number Required
Fuel Tank	4	ounce	118	cc	1
Spinner	1 3/4	inch	44	mm	1
Covering	2 rolls depending on trim scheme

KIT FEATURES

SIG Easy Hinges

Hardware Pack

Full Size Plan

Photo-Illustrated Assembly Manual

Simple Balsa/Plywood Construction

Hardwood Landing Skid

Engine Mounts

CAUTION:
The Wonder is not recommended for beginners or the faint of heart. It's FAST!

Wonder Kit Instruction Manual Click title to open in a new window.

	Complete Pdf (2.3 Mb) Download
