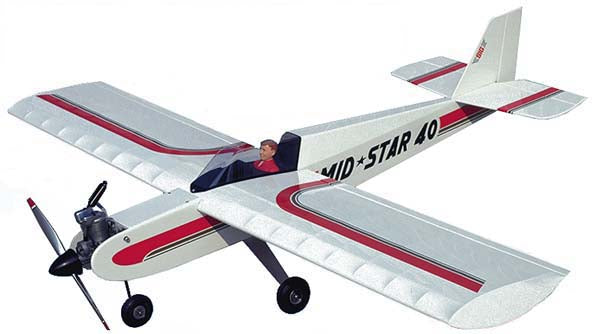

SIG MID-STAR 40 KIT

SIG MANUFACTURING

SIGRC56

Sold Out $225.00

Are you a novice R/C pilot looking to move up from a high-wing trainer? Are you an intermediate pilot looking for a fully aerobatic sport model? Or are you an advanced pilot looking for a kit that builds fast and is just plain fun?

Look no further! The Mid-Star 40 is your answer!

The Mid-Star 40 is a great way to launch into the wild world of aerobatics. When you're ready to return to earth, the Mid-Star 40 will settle down for slow, gentle landings every time. Novices and experts alike will appreciate the removable fuel tank hatch the stylish canopy that comes off with one screw, and the simple overall design. The structure is sturdy enough for the toughest weekend flying. If you're looking for sport flying at its best, you'll find it in the Mid-Star 40.

Wingspan 64.5 in 1638 mm Wing Area 630 sq in 41.7 dm² Length 47.5 in 1207 mm Flying Weight 5 lb 2268 g Wing Loading 18.3 oz/sq ft 55.7 g/dm² Radio Required 4-Channel (not included) Engine Required (not included) Set Up Specifications                                   Accessories   2-Stroke .30 - .40 cu. in. (4.9 - 6.5 cc) 4-Stroke .40 - .50 cu. in. (6.5 - 8.2 cc)   Elevator     1/2 inch 13 mm Up and Down     Rudder   1      inch  25 mm Right and Left   Ailerons     3/8 inch 10 mm Up             5/16 inch 8 mm Down     Center of Gravity 0      inch 0 mm At Main Spar   Dihedral   1      inch 25 mm Pre Wing Panel   Incidence   +1/2 degree wing, 0 degree stabilizer       Engine Offset 0 degree down, 0 degree right                             English Metric Number Required   Pilot   2      inch 51 mm 1     Main Wheels 2.75 inch 70 mm 2     Nose Wheel   2.25   57 mm 1     Fuel Tank   8 ounce 237 cc 1     Spinner   2      inch 51 mm 1     Covering   3 rolls depending on trim scheme

KIT FEATURES
Laser-Cut LitePly Fuselage Simple Balsa Wing Design Pre-Cut Tail Surfaces Builds Fast Sig Easy Hinges	High Performance Mid Wing Stability Full-Size Plans Photo-Illustrated Assembly Manual 2 Big Decal Sheets

Mid-Star 40 Kit Instruction Manuals Click title to open in a new window. Complete Pdf (2.5Mb) Dowload
