SIG ANNIVERSARY CUB 1/5 SCALE KIT

sig manufacturing

SIGRC82



America’s Flying Legend

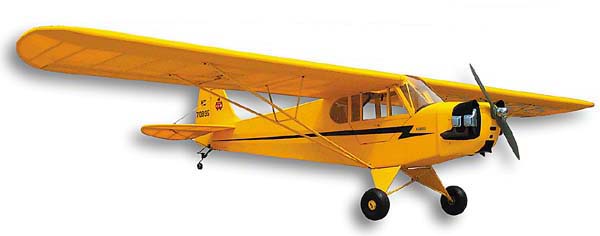

The full-scale Piper J-3 Cub is easily one of the most recognizable airplanes in the history of aviation. The Cub has been flying for more than seven decades and continues to please pilots with its great performance and "easy flying" characteristics! SIG has taken this legacy very seriously with this beautiful 1/5th scale version of this truly legendary aircraft.

In the air, the SIG 1/5th scale Cub is easily one of the finest R/C scale models you've ever flown! Smooth, docile, and easy to fly at any speed, the SIG 1/5th scale Cub re-creates the real thing. This kit has the option of being built as either the full-span Cub or the more agile "clipped wing" version.

Specifications Piper J-3 Cub Clipped Wing Cub
Wingspan 84.5 in 2146 mm 68.3 in 1735 mm
Wing Area 947 sq in 61.1 dm² 752 in² 48.5 dm²
Fuselage Length 55.3 in 1403 mm 55.3 in 1403 mm
Flying Weight 7 lb 3200 g 7 lb 3200 g
Radio Required 4-Channel with 5 Servos (not included)

Engine Required
(not included)



Set Up Specifications

































Accessories

2-Stroke .40 - .45 (6.5 - 7.5 cc)
4-Stroke .45 - .60 (7.5 - 10.7 cc)



Elevator   1      inch 25 mm Up and Down
Rudder   1  3/4 inch  44 mm Right and Left
Ailerons     3/4 inch 19 mm Up
      1/2 inch 13 mm Down
Center of Gravity 3  1/2 inch 89 mm From leading edge at root
Dihedral     degrees   degrees
Incidence   +  degree wing,  degree stabilizer
Engine Offset   degree down,  degree right

    English Metric Number Required
Main Wheels   3  3/8 inch 86 mm 2
Tail Wheels   1      inch 25 mm 1
Fuel Tank   12 ounce 355 cc 1
Spinner   May use a Prop Nut of a size to fit the engine selected
Covering   3 rolls depending on trim scheme

KIT FEATURES
  • Laser-Cut Wood Parts For Acurrate Fit and Fast Building
  • 2-Piece Wing System and Functional Wing Struts
  • Crystal Clear Windsheild and Side Windows
  • Fiberglass CowlingWith “Eyebrow” Air Scoops
  • Molded Plastic Scale Dummy Engine
  • Functional Side Door and Window
  • Scale-Like Wire Landing Gear and Tail Wheel Assembly
  • Complete Decal Set Including Scale Instrument Panel
  • Detailed Rolled Plans
  • Photo-Illustrated Assembly Manual
  • Complete Hardware Pack
Anniversary Cub Instruction Manual

Complete Pdf (5.1Mb) Download
