RDX1 Pro AC/DC Battery Charger/Discharger

HI TECH

44246

Product Description

The RDX1 Pro is a high-performance, microprocessor-controlled charger/discharger with battery management capabilities suitable for most popular battery types. Featuring an integrated six-cell balancer for all Lithium chemistries including the latest high voltage Lithium-Polymer (LiHV) cells, this AC/DC professional-grade unit offers a maximum charge power of 100 watts! Our Charge Master software feature allows convenient, optional control using your own PC. Its slim, inline, tower design with easily-accessible front ports make this handy space saver a must-have in the workshop! Charge like a RDX1 PRO with Hitec!



Features

  • Slim, Compact, Inline, Tower Design
  • Optimized Operating Software
  • Automatic Data Save
  • Charges All Popular Battery Chemistries
  • Integral Lithium Battery Balancer
  • PC Control, Using Hitec’s Charge Master Software

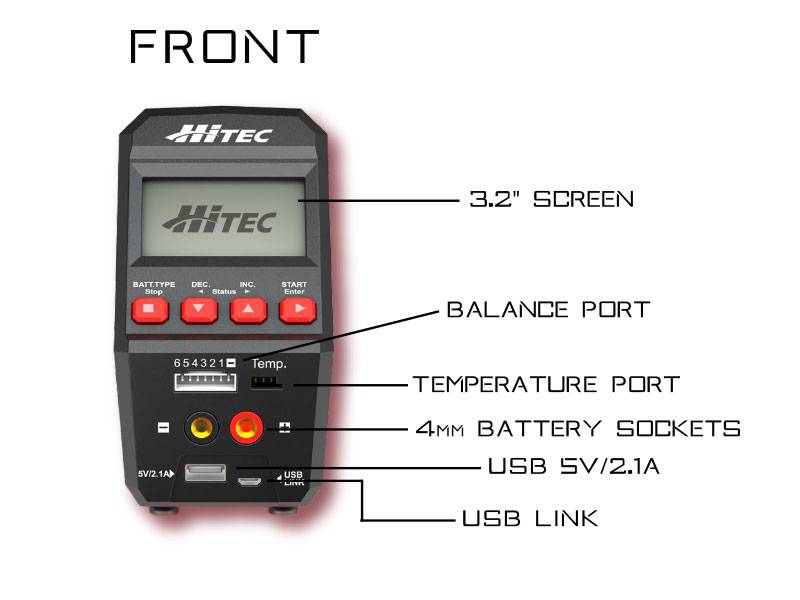

  • 3.2 Inch, Easy-to-Read Screen

Charging Specifications

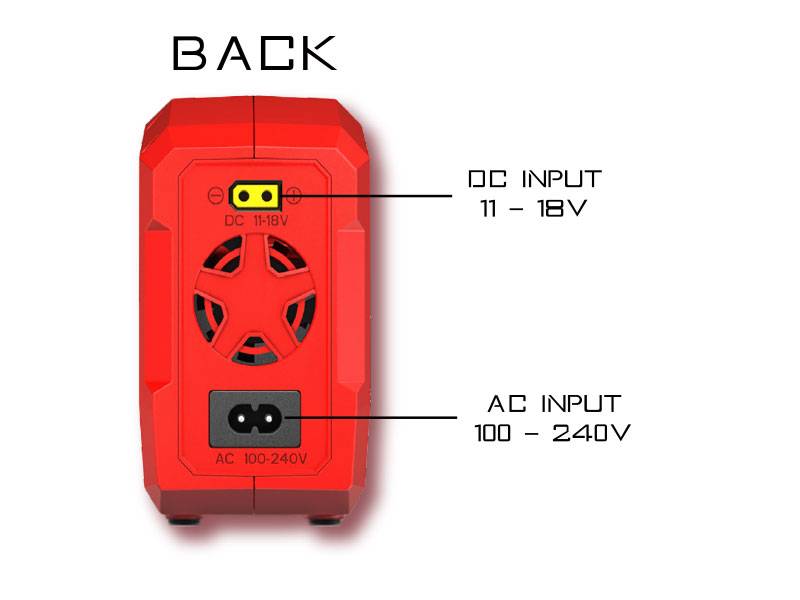

  • AC Input: 100-240 Volts AC
  • DC Input: 11-18 Volts DC
  • Maximum Charge Power: 100 Watts
  • Charge Current Range: 0.1 – 10.0 Amps
  • Maximum Discharge Power: 10 Watts
  • Discharge Current Range: 0.1 – 2.0 Amps
  • Balancing Port Current Drain: 300mA per Cell
  • NiCd/NiMH Battery Cell Count: 1-15 Cells
  • LiPo/LiHV/LiFe/LiIon Cell Count: 1-6 Cells
  • Pb Battery Voltage: 2-20 Volts
  • Dimensions: 6.26 x 2.85 x 4.84 in. (159 x 72.5 x 123mm)
  • Weight: 16.6 oz. (470g)

 CLICK HERE TO SEE USER MANUAL
