HI TECH HS -D645MW MG SERVO

Hi Tech

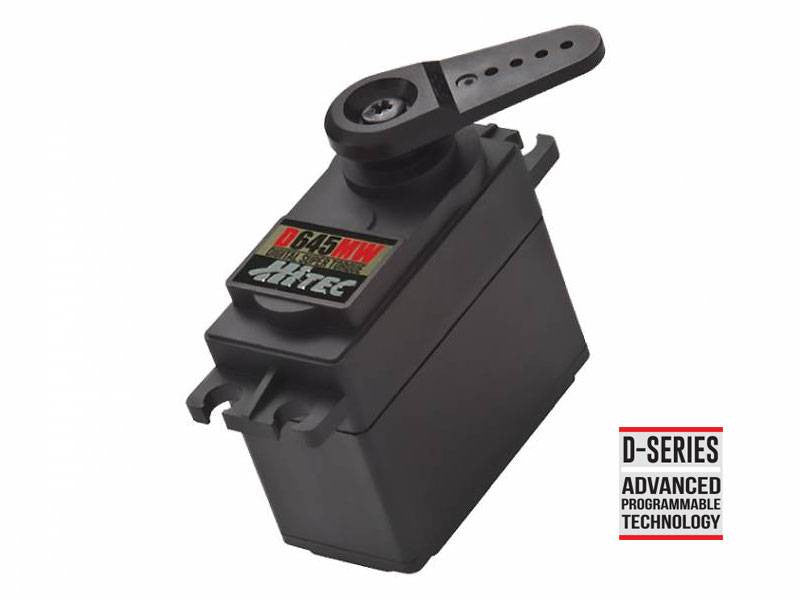

HS-D645MW

Product Description

The metal D-645MW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

Features

  • Programmable PWM Digital Amplifier
  • 32-Bit MCU with 12-Bit ADC Circuitry
  • 4096 Resolution
  • 1M Cycle Long Life Potentiometer
  • Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • 25-Tooth Output Spline

CLICK HERE FOR EXTENSIONS AND HARDWARE



D645MW Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°) 0.28 ~ 0.20 ~ 0.17
Maximum Torque Range oz. / in. 115 ~ 158 ~ 180
Maximum Torque Range kg. / cm. 8.3 ~ 11.3 ~ 12.9
Current Draw at Idle 30 mA
No Load Operating Current Draw 500 mA
Stall Current Draw 2,650 mA
Dead Band Width 2 µs
Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.48
Dimensions (Metric) 40.6 x 19.8 x 37.8
Weight (Ounces) 2.11
Weight (Gram) 57.0
Circuit Type 32bit Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) H25T
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 60
Radio Control Applications
Parkflyer N / A
Sport Plane 12 - 15 lbs.
Sailplane  2 meters and up
3D Performance 12 - 15 lbs.
Scale 12 - 15 lbs.
Electric Helicopter 600mm
Gas Helicopter 50 - 59 Class
On Road 1/10th
Monster Truck 1/10th
Buggies 1/10th
Truggies 1/10th
Short Course / Truck 1/10th
Crawlers 1/10th
Sail Boat = >1M & Scale
Power Boat 1/10th
